Frozen Cutter
Block Cutter
Cut deep frozen (-20C) raw material into pieces

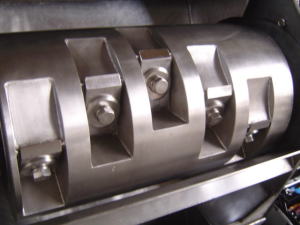

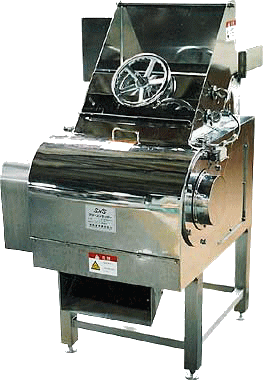

Frozen Cutter Model: FZ Blade Unit
Machinery Specifications of FZ
Machinery Dimensions (L)880mm x (W)880mm x (H)1500mm
Max. Raw Material Dimensions (L)600mm x (W)500mm x (H)200mm
Blade (W)54mm x 10pcs.
Capacity 800kg - 1,000kg/hr.
Electric Consumption 3Phase, 200V, 5.5kW
Height of Output 300mm
Blade Unit Rotation Speed Approx. 150 R.P.M.
Machinery Net Weight Approx. 400kg

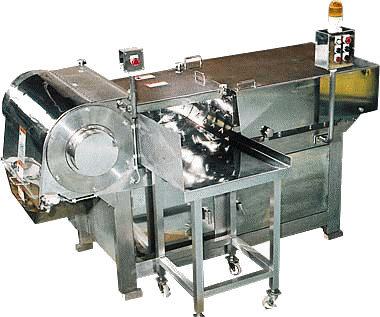

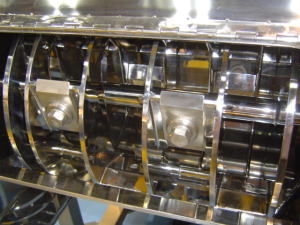

Frozen Cutter Model: MZ Blade Unit
Machinery Spefisications of MZ
Machinery Dimensions (L)2150mm x (W)900mm x (H) 1200mm
Max. Raw Mateial Dimensions (L)560mm x (W)450mm x (H)200mm
Blade Unit (W)54mm x 10pcs.
Capacity 1,000kg - 2,000kg/hr.
Electric Consumption 3Phase, 200V, 5.5kW
Height of Output 600mm
Blade Unit Rotation Speed Approx. 150R.P.M.
Cutting Thickness Adjustment 2mm - 8mm
Machinery Net Weight Approx. 700kg
Cutting Sample and Performance
Frozen Beef Block 25kg Approx. 50 seconds
Frozen Fish Block 5kg Approx. 40 seconds
Frozen Pork Skin Block 20kg Approx. 50 seconds
Frozen Salmon Head 10kg Approx. 50 seconds
