Meat Separators or Soft Separators
* Meat Bone Separators for Aqua Product and Surimi Plant And Various products can be refined or recovered by using this machine and method.
Click for Operation Movie
ABCO Meat Separator Model: R2				Specifications		ABCO Meat Separator Model: R2 SUS
R-2 Operation on Tuna Meat				Machinery Dimensions (LxWxHmm)	1,250x1,000x1,150	Tuna Meat Processing by R-2
				Capacity (kg/hr.)	400 - 500
				Motor (kW)	2.2
				Machinery Net Weight (kg)	600
				Materials	Parts attached with fish meat are made of SUS, others are made of Cast Iron or SS
					Most parts are made of SUS

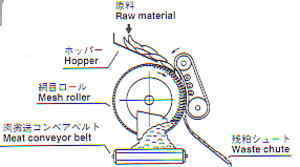

ABCO Meat Separator Model: R5				Specifications		Meat Separating System of R2 & R5
Surimi Plant Movie				Machinery Dimensions (LxWxHmm)	1,800X1,600X2,000
				Capacity (kg/hr.)	2,000 - 3,000
				Motor (kW)	3.7
				Machinery Net Weight (kg)	1,300
				Materials	Most parts are made of Painted Cast Iron and Standard Steel
Click for Surimi Production
ABCO Meat Separator Model: R7L				Specifications		Rollers with Press plate
				Machinery Dimensions (LxWxHmm)	2,050x1,600x2,000
				Capacity (kg/hr.)	3,000 - 4,000
				Motor (kW)	9.2
				Machinery Net Weight (kg)	3,100
ABCO Potato Skin Separatorsand also for fruit, vegetables
ABCO Potato Skin Separator Model: M1				Specifications		Raw Material: Boiled Potatos
				Machinery Dimensions (LxWxHmm)	1,150x700x950
				Capacity (kg/hr.)	200 - 300
				Motor (kW)	0.4
				Net Weight (kg)	250
Click here for the movie
ABCO Potato Skin Separator Model: G1				Specifications		Potato being Processed
				Machinery Dimensions (LxWxHmm)	1,250x1,200x1,350
				Capacity (kg/hr.)	400 - 700
				Motor (kW)	0.75
				Net Weight (kg)	500
ABCO Potato Skin Separator Model: R5PW				Specifications		Separated potato and skin
				Machinery Dimensions (LxWxHmm)	1,800x1,600x1,400
				Capacity (kg/hr.)	1,000 - 2,500
				Motor (kW)	2.2
				Net Weight (kg)	1,300
Processed Samples
Chicken				Crab		Fish
Potato				Salmon		Shrimp/Prawn
Strawberry				Sweet Potato		Crab Recovered Meat
