 Click for movie |
|||||||
| Kanikama or Imitation Crab Meat |
Stick Type | Craw Meat Type | Chunk Meat | ||||
  |
 |
 |
 |
||||
| For Mxing Raw Materials |
Silent Cutter | or for higher quality mixing raw material by |
Ball Cutter | ||||
 |
 |
|
 |
||||
| Specifications | Specifications | ||||||
| Number of Blade |
6 pcs. | Operation | Computer Contorol |
||||
| Rotation Speed |
3000/1500r.p.m. | Rotation Speed |
3600/1800r.p.m. | ||||
| Capacity | 250kg/batch | Capacity | 200kg/batch | ||||

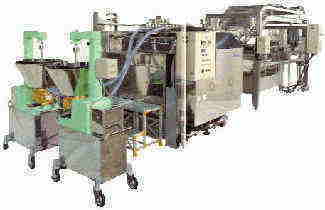

| Main Equipment |  |
 |
|||||
|
|||||||
| Specifications | |||||||
| Dimensions | (W)2000mm (L)8100mm |
||||||
| Heat Source | Steam | ||||||
| Consumption of Steam |
150kg/hr. | ||||||
| Cooking Temparature |
85C-87C | ||||||
| Cooking Time | 15 seconds | ||||||
| For Meat Feeding | Molding Machine | For Cooking Meat | Cooking Machine | ||||
|
 |
|
 |
||||
| Constantly feeding mixed meat toward main equipment with capability of making thickness of 0.8mm sheet |
Total length of Machiney becomes shorter and lower in running cost at 1/4th of previous equipment |
||||||
| For Cooling | Cooling Conveyor | For Slit Cutting | Thin-Cutting Machine | ||||
|
 |
|
 |
||||
| Naturally cooling & drying the sheets |
Thin-Cutting the sheets into as if they are crab meat fibers texture |
||||||
| For Bundling | Bundling Machine | For Wrapping & Cutting | Wrapping & Cutting Machine | ||||
|
 |
|
 |
||||
| Bundling thin-cut meat into roll |
Wrapping film covering bundled meat and then cut respective length |
||||||
 |
|||||||
