High Speed Slit Slicer for Fresh Meat, Fish and Other Foods | |||||||

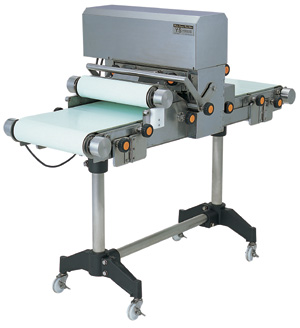

Model: 9000W High Speed Slit Slicer | |||||||
![]() |
|||||||
![]() |
|||||||
![]() |

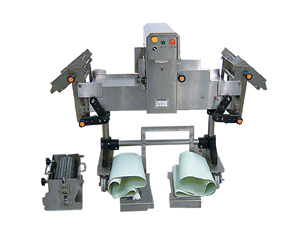

Easy Cleaning after operation | ||||||
![]() |
|||||||
Slitter Blade Attachment | |||||||
![]() |
|||||||
Machinery Specifications | |||||||
Machinery Dimensions | (L)1345 x (W)703 x (H)1072mm | ||||||
Slicing Capacity | 100kgs - 800kgs/hr. | ||||||
Slicing Thickness | 5mm - 200mm | ||||||
Feeding Port Dimensions | (W)300mm x (H)45mm | ||||||
Electric Consumption | 3 Phase, 6kW | ||||||
Safety Device | Circuit Breaker with Sensors | ||||||
Cutting Samples | |||||||
Salmon & Squid | Fride Been Curd | Chicken | |||||
![]() |
![]() |
![]() |
|||||
Cucumber | Pickled Eggplant | Liver Meat | |||||
![]() |
![]() |
![]() |
|||||
![]() |
![]() |
||||||
![]() |
![]() |
||||||
![]() |
![]() |
||||||
Features; 1. Rotation of disc blades causes no cut scraps and crushed portions of foods remained inside. Rotation speed can be adjusted freely according to the types of food materials, so that you can get sharp slicing. 2. Conveyors can be bully used across the entire width. Foods conveyed on the conveyors are momentally passed through the rotary blades, and thus, adjustment of the conveyors speed makes it possible to perform mass processing at high speed. 3. Blade Attachments can be replaced within two minuites and slicing size can be easily changed. 4. HACCP Based hygienic construction for easy dismounting and cleaning allows through cleaning and sterilization of conveyors and a blade attachment with touch opetration. Also a water tight construction corresponding to IP65 allows cleaning with ease. 5. Compact design with casters provides high mobility and easy installation. |
|||||||
![]() |
|||||||
