| Various Optional Products |
 |
Ice Pop or
Tu-Tu Juice sample |
 |
 |
Ice Pop
Polyjuice Filling & Sealing Machine |
| or Tu-Tu Juice Filling & Sealing Machine |
  |
 Click for General information about Ice Pop |

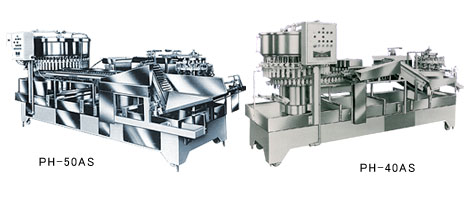

 Click for PH-50AS Production View |
| Machinery Specifications |
| Machinery Model |
PH50AS |
|
PH40B |
| Machinery Dimensions |
(L)4550 x (W)1500 x (H)1800mm |
|
(L)3450 x (W)1500 x (H)1780mm |
| Machinery Weight |
2500kgs |
|
1700kg |
| Production Capacity |
12,000pcs/hr (product 90cc) |
|
7,500 - 9,000pcs./hr (product 90cc) |
Electric
Consumption |
Main Spindle |
3Phase, 200V, 0.75kW |
|
3Phase, 200V, 0.75kW |
| Blower |
3Phase, 200V, 3.4kW |
|
3Phase, 200V, 1.5kW |
Discharge
Pump |
3Phase, 200V, 0.2kW |
|
3Phase, 200V, 0.2kW |
Watter
Supply |
3Phase, 200V, 0.75kW |
|
3Phase, 200V, 0.75kW |
Belt
Conveyor |
3Phase, 200V, 0.09kW |
|
3Phase, 200V, 0.09kW |
Sealing
Heater |
8.7kW |
|
7.5kW |
|

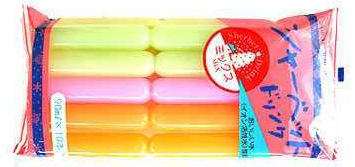

| Sample of Standard Ice Pop |
Milk Taste Ice Pop
10 pcs. in a Bag |
|
From Concentrate Ice Pop
10 pcs. in a Bag |
 |
|
 |
| Other Filling & Sealing Machinery |

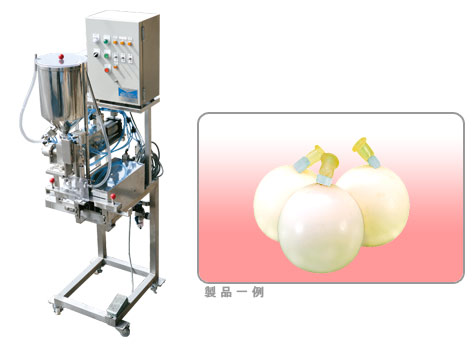

| JB-mini |
|
Click for Movie |
 |
|
| Specifications |
| Capacity |
240pcs/hr. (max.) |
| Electric Consumption |
Single Phase 100V |
| Dimensions |
(W)550 x (L)640 x (H)1600mm |
| Compressed Air |
300liters/min. |
|

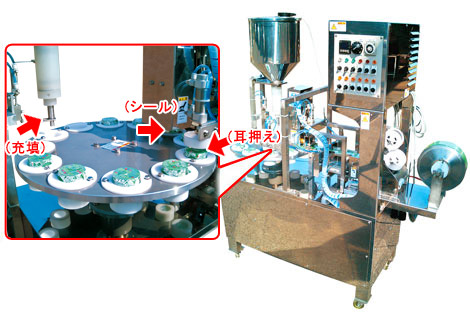

| Cup Seal Machine MB-600 |
|
Click for movie |
 |
|
| Specifications |
| Capacity |
600pcs/hr. |
| Electric Consumption |
Single Phase 100V |
| Dimensions |
(W)570 x (L)1350 x (H)1480mm |
| Weight |
450kg |
| Conpressed Air |
0.4kW |
|

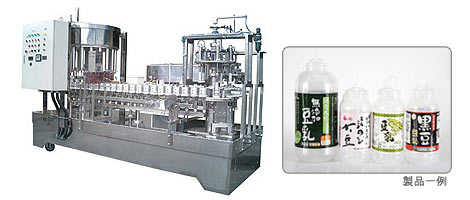

| Soy Bean Milk Filling & Sealing Machine RAP-1500 |
|
Click for movie |
 |
|
| Specifications |
| Capacity |
1,500pcs/hr. |
| Electric Consumption |
3Phase, 200V, 2kW |
| Single 100V, 6kW |
| Dimensions |
(W)1,200 x (L)3,200 x (H)2,000mm |
| Weight |
2,000kg |
| Compressed Air |
0.5Mpa 400Liters |
|
|
|
|

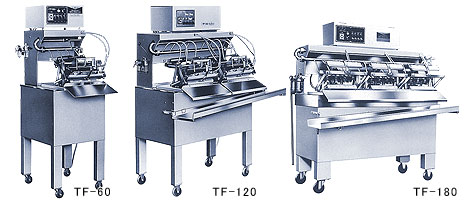

| Tofu Filling Machine TF-60, TF-120, TF-180 |
|
Click for movie |
 |
|
| Specifications |
| Model |
TF-60 |
TF-120 |
TF-180 |
| Dimensions |
650x1450x1700 |
650x1450x1700 |
650x1450x1700 |
| Capacity |
600pcs/hr. |
1,200pcs/hr. |
1,800pcs/hr. |
| Electric |
Heater |
40V 1kW |
40V 1kW |
40V 1kW |
| Compressor |
100V, 0.2kW |
100V, 0.2kW |
200V, 0.4kW |
| Pump |
100V, 0.13kW |
100V, 0.13kW |
200V, 0.2kW |
| Weihgt |
80kg |
160kg |
250kg |
|
|
 |
